RT Advanced
RT AdvancedRT AdvancedRT AdvancedRT Advanced
BI-ESS-RTA
€74.155,00

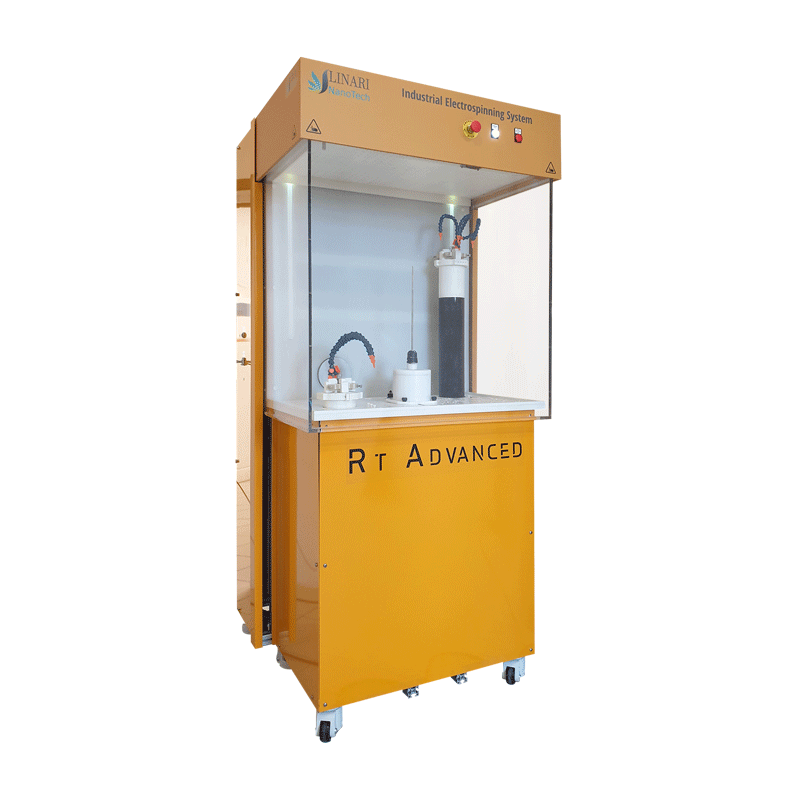

    The most technologically advanced electrospinning machine for industrial production and advanced research.



    Available in 1-2 months

Customizations Total: €0,00

  • DESCRIPTION
  • COMPATIBILITY/DETAILS
  • ASK MORE

    If you are looking for a full optional machine with high productivity, RT Advanced certainly is the right system for you. With this machine, you'll be able to work with up to 8 different materials at the same time





    The peculiarity of this system is that the collector stays fixed, while the syringes move on the vertical axis. This technology, combined with the vertical collector and the machine weight of 300kg, allows reaching a speed up to 5000 rpm without causing oscillation and remaining a quiet device.


    Compared to other systems, RT Advance is the only system able to move the syringes without using tubes. By working with tubes, a huge quantity of material remains inside them. That causes a waste of the material and a need to regularly replace tubes. With this advanced machine instead, this won't be a problem.




    The knowledge of our engineers, together with an analysis of our customer's requests, lead us to work with fully programmable pumps, completely independent.
    Using the Omron Electronics Industrial components, the electronic control has maximum reliability, under heavy conditions too.
    In case of blackout or malfunction, the system will be automatically interrupted.


    Option: Laser Measuring System
    Real Time quality control
    : Being the fibers extremely soft and thin, calipers or micrometers
    are not suitable to measure the number of nanomaterials produced. Through the optical system of Omron technology, we can now monitor in real-time the thickness of the fibers, to an accuracy of 10 nanometers.

    https://www.youtube.com/watch?v=tYRVnj6VZIQ

    Features:

    -WiFi controller with a 12.3" Microsoft Surface Pro 4 Tablet-PC
    -Access and visibility on three sides of the electrospinning chamber
    -Built-in high voltage 60 kV generator

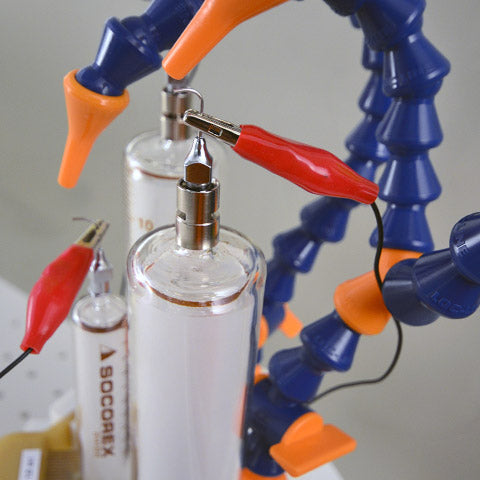

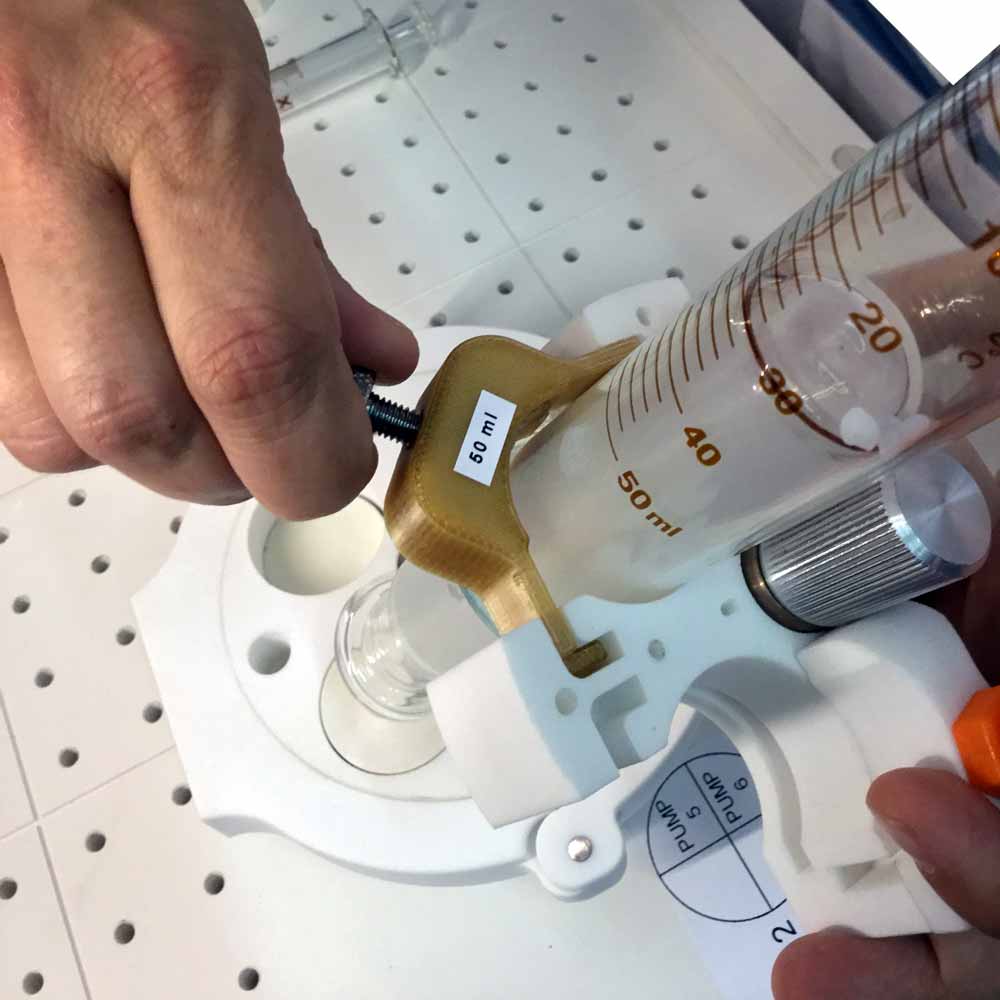

    -Up to 8 pumps for independent syringes (up to 50 cc)

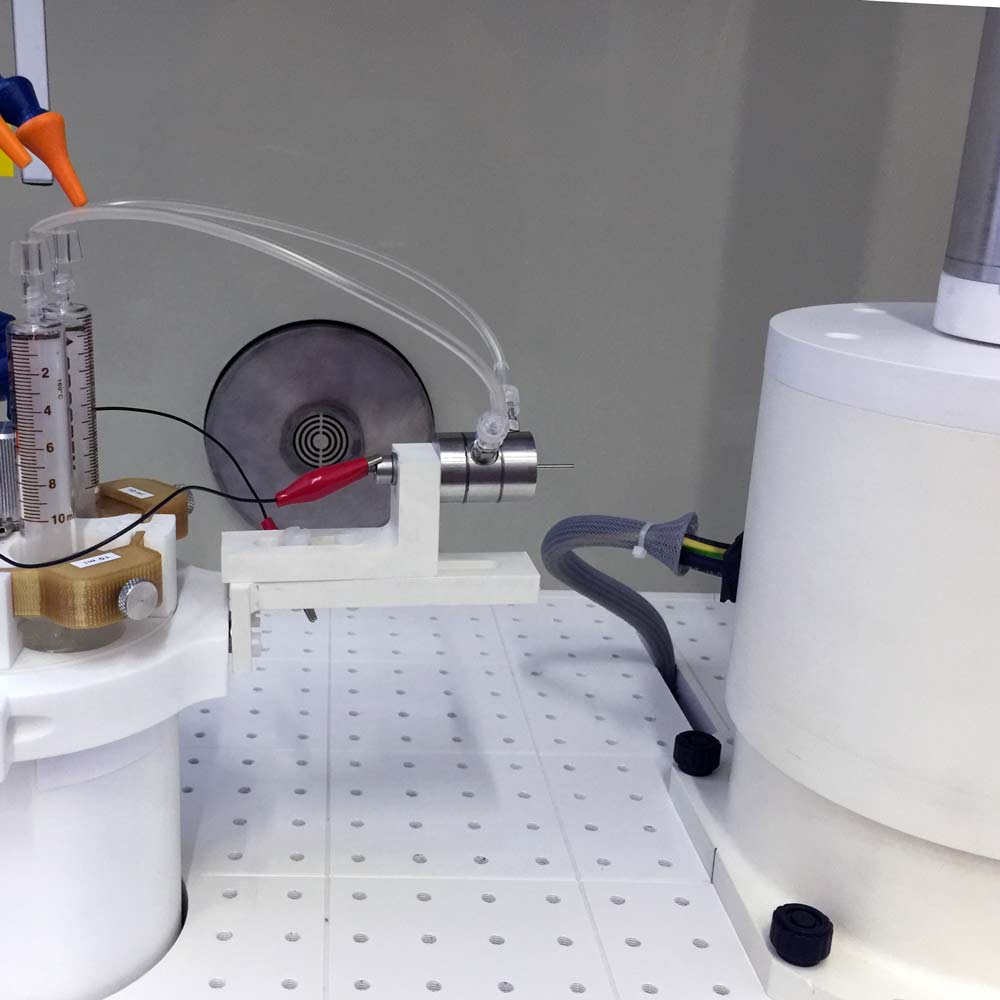

    -Multi-needle or coaxial needle system
    -Easy to replace flat or drum collectors, between 1 to 250 mm in diameter, maximum length 500 mm
    -Vertical axis of rotation of the collectors up to 5000 rpm for the creation of tubular structures with aligned fibers
    -Vertical axis of a continuous belt for the creation of flat substrates with length up to dozens of meters
    -Automatic cleaning of the needles with timed jets of compressed gas
    -Control of internal temperature and humidity, flushing with inert gases- RT - 50 °C, 20% - 70% RH
    -Built-in suction system



    The collector is insulated from the ground so that it can be connected to a second high voltage generator up to a potential of +/- 60kV.
