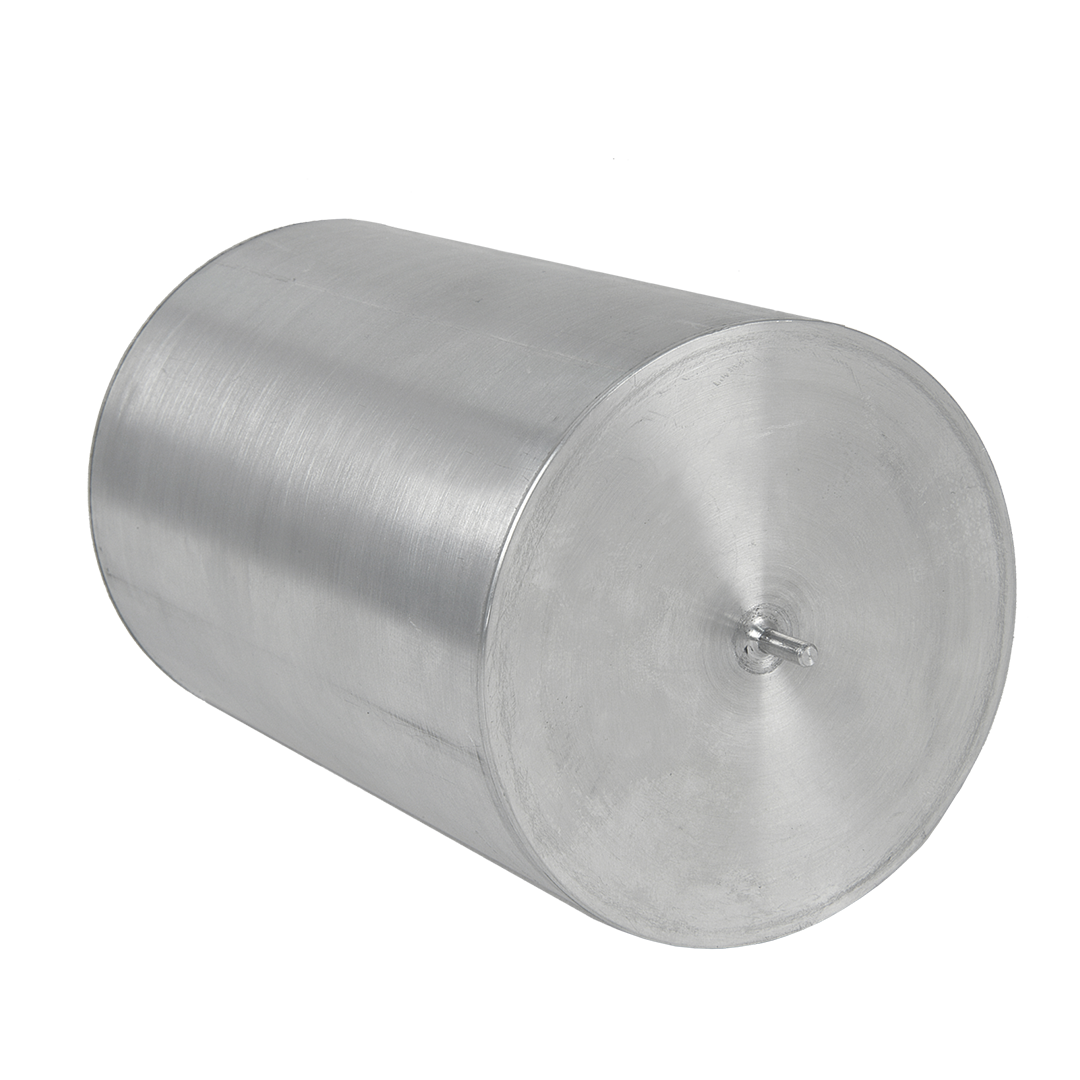

Aluminum Drum Collector – Hollow, High-Speed Rotation

Cylindrical drum collector designed to guarantee a successful electrospinning process at high rotation speeds.

HIGH SPEEDS WITHOUT DANGEROUS VIBRATION

Made of high-resistance hollow aluminum: weight and moment of inertia are reduced to the minimum, allowing high rotation speeds without triggering dangerous vibrations — the key requirement for producing aligned nanofibers with uniform thickness.

WHAT ADVANTAGES DO YOU GET FROM THIS DRUM COLLECTOR?

Every drum comes with bare, non-anodized and untreated aluminum outer surfaces to reduce electrical resistance and keep the electric field uniform across the collecting surface.

SPECIFICATIONS

• Sizes (diameter × length): 30×120 mm and 80×120 mm
• Material: hollow aluminum, untreated surface

COMPATIBILITY

Suitable for all our rotary electrospinning systems, including the Easy Drum.

FREQUENTLY ASKED QUESTIONS

How does rotation speed affect fiber alignment?

At low speed the drum collects random fibers with uniform thickness; above a threshold linear surface speed, fibers align along the rotation direction. The hollow, balanced construction lets you reach alignment speeds without vibration.

Which diameter should I choose?

The 80 mm drum offers a larger collecting area and higher linear speed at equal rpm; the 30 mm version is ideal for small samples and tubular scaffolds such as vascular graft geometries.
