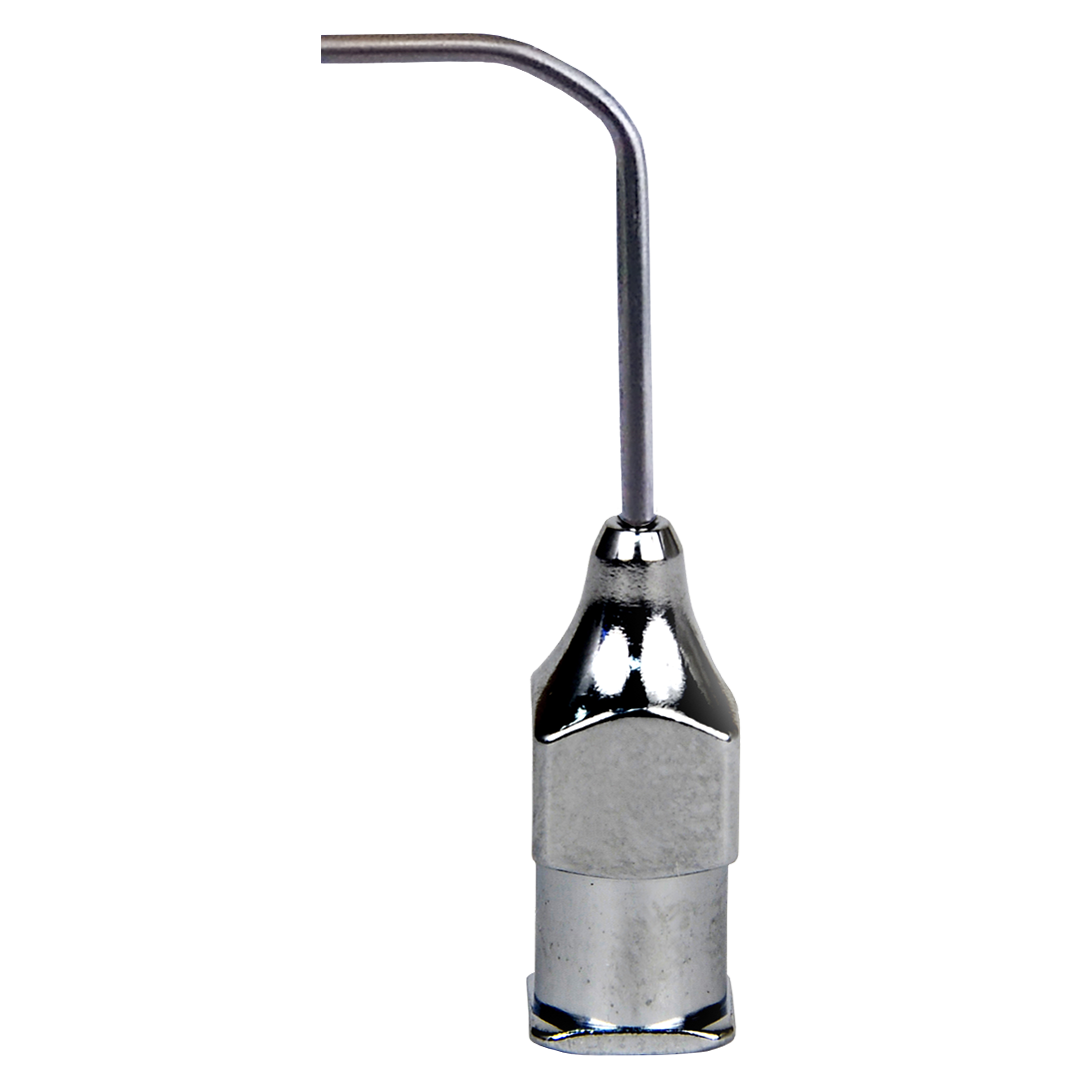

Luer Needles – 90° Bent, Flat Tip (6 pcs)
Luer Needles – 90° Bent, Flat Tip (6 pcs)
AISI 316 stainless steel Luer needles with flat tip, bent at 90° — designed for systems where needles are installed horizontally and shift vertically. Pack of 6 pieces.
ACCURATE FIELD CONTROL IN VERTICAL SETUPS

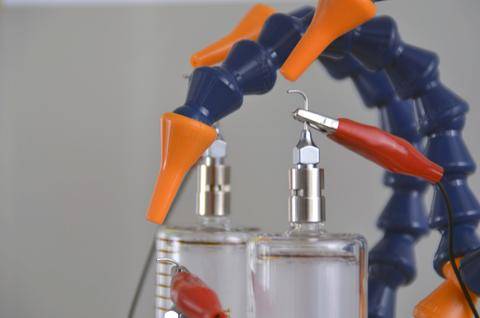

The flat tip allows accurate control of the electric field, guaranteeing its symmetry and reducing local tip ionization (corona effect), which could alter the solution at high voltage values. The 90° bend lets the fluid line arrive from above or from the side while the tip points at the collector.
COMPATIBILITY
Ideal for dispensing fluids with the RT Advanced, where needles are installed on the vertically shifting head.
SPECIFICATIONS
- Material: AISI 316 stainless steel
- Connector: Luer Lock, female, metal
- Tip: flat, bent 90°
- Sizes: 0.8 mm OD × 15 mm · 1.0 mm OD × 20 mm · 1.2 mm OD × 25 mm
- Pack: 6 pieces
FREQUENTLY ASKED QUESTIONS
When do I need bent needles instead of straight ones?
Whenever the feed line and the spinning direction are not parallel — typically on multi-needle heads and translating spinnerets like the RT Advanced. For static setups with the syringe in line with the collector, straight flat-tip needles are the standard choice.
Are they compatible with third-party systems?
Yes — the female Luer Lock connector fits any standard male Luer tubing or syringe.
