Easy Drum - Entry Level
Easy Drum - Entry LevelEasy Drum - Entry Level

VIEW TECHNICAL INFORMATION AT ANY TIME

Easy Drum - Entry Level

BI-EASY-DRUM-ED1
€5.750,00

    Easy Drum - Entry Level is equipped with a Rotary System to obtain aligned or random fibers


    Compared to the other systems, it is not possible to change the collector size

  • DESCRIPTION
  • DETAILS
  • ASK MORE

AFFORDABLE ROTARY SYSTEM FOR BEGINNERS

Rotary collector with unchangeable collectors, able to reach a speed of +75...3000rpm.

🟢What advantages do you get from using this machine?

Easy Drum provides a digitally controlled rotation system for drum collector.

🟢What materials can you electrospin?

      It is possible to electrospin any type of synthetic, organic polymer or ceramic material, starting from solutions at room temperature.


🟠Upgrade Version

Are you looking for higher specifications or do you want to be free to change collectors?


With our Easy Drum you can achieve a rotation speed of up to 5000rpm, moreover this solution allows you to detach the collector, with the advantage of simply replacing it and allowing the creation of tubular structures.

€7.175,00

Technical features of the device

  • Rotary system with sealed brushless motor without forced ventilation to avoid the contamination of the nano-fibers and their dispersion.
  • Speed of rotation up to 3000 rpm in both directions.
  • Electric control panel with digital indication of speed.
  • Built-in collector grounding connections for minimum electric resistance.
  • High voltage insulation capability up to 40 kV.

General information

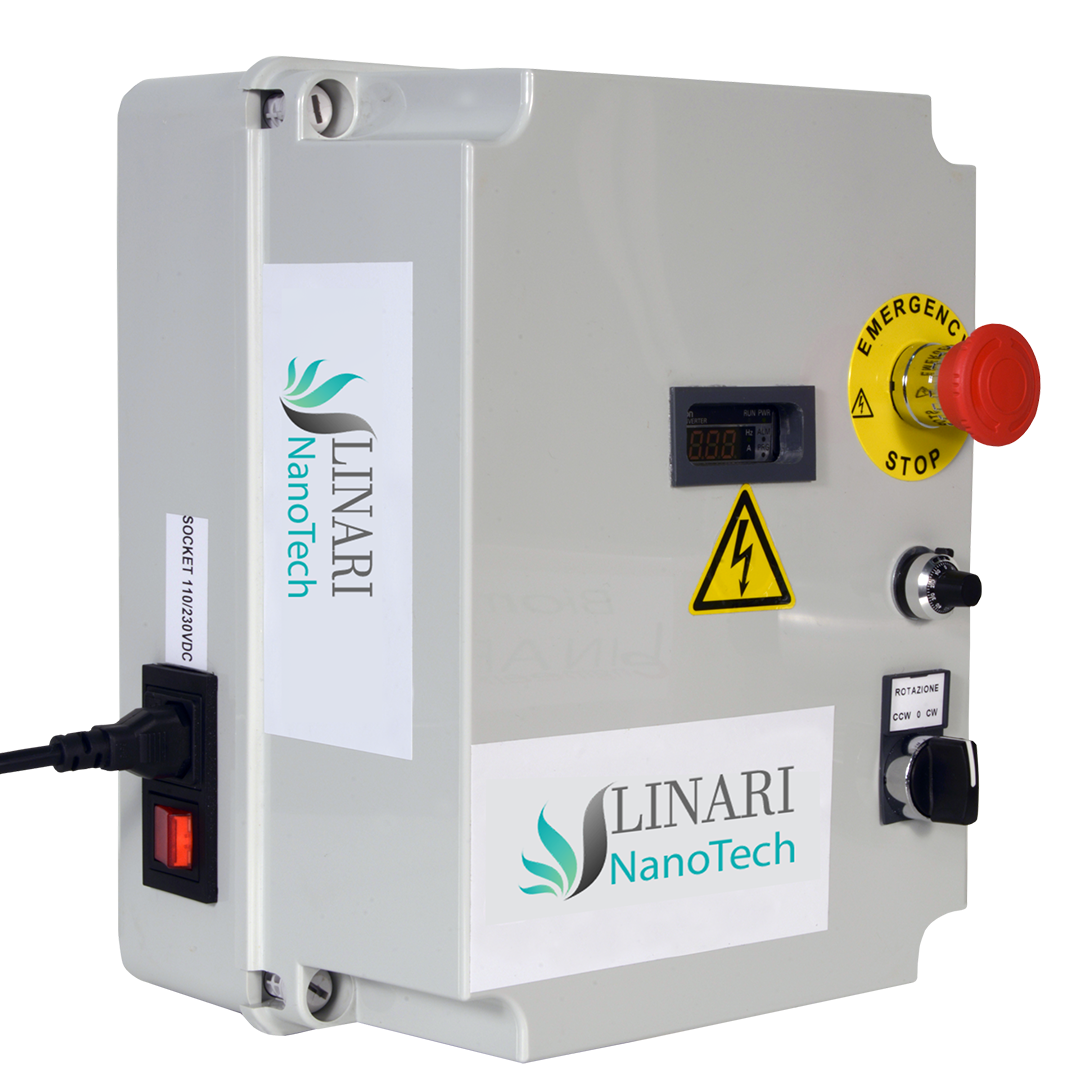

CONTROL UNIT:
Lenght: 25 cm.
Width: 25 cm.
Height: 30 cm.
Weight: 5 kg.
Power Supply: 240V, 50 Hz, 1A.
Safety system: Emergency Stop.



ROTATION UNIT:
Lenght: 44 cm.
Width: 12 cm.
Height: 13 cm.
Weight: 5 kg.
Rotation speed: +75...3000 rpm.
Collector polarity: Grounded.



Technical advantages of the device

Reliability: the use of Omron Electronics industrial components for the control electronics guarantees the maximum reliability of the system also under heavy use conditions.

Safety

You have the guarantee of a safe device, with all metal parts grounded with low impedance.

STANDARD PRODUCT INCLUDED

The system is supplied with an Aluminum Cylindrical collector (D: 100mm L: 200mm).

VIEW TECHNICAL INFORMATION AT ANY TIME


COMPATIBILITIES

Discover all the collectors suitable with our Easy Drum.
