Base of Modular Coaxial Needle

Base of Modular Coaxial Needle

Regular price €1.484,65 plus VAT
Regular price Sale price €1.484,65
Sale Sold out

Base of Modular Coaxial Needle to customize your electrospinning coaxial equipment.
The ideal solution for Core-Shell electrospinning for any type of polymer, even in the most corrosive solvents.

SETUP WITH INTERCHANGEABLE AND DETACHABLE TIPS

All the tips are made of AISI 316 stainless steel and are laser welded for maximum cleanliness and precision. Customized tips can be created upon request with diameters and lengths differing from those listed in this catalog.

WHAT ADVANTAGES DO YOU GET FROM USING INTERCHANGEABLE TIPS?

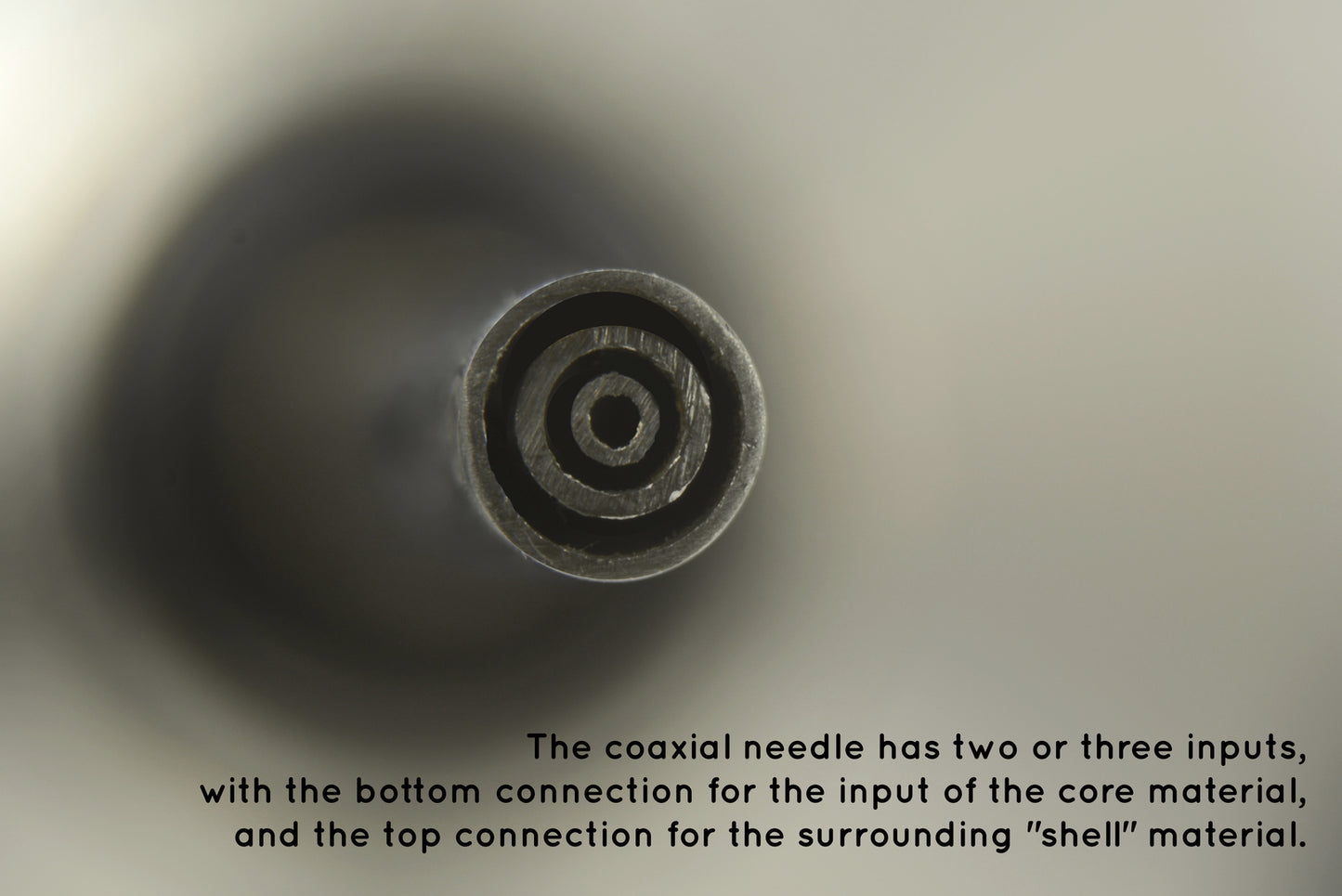

With coaxial needles, you gain the ability to spin two or more polymers simultaneously within the same fiber. This can allow for the production of fiber with an inner core and outer shell.
Core-Shell fibers
The interchangeable tips make  it easy to replace the tip of every layer of the coaxial needle in order to be able to adapt different diameters.
The assembly is done with a simple screwdriver, supplied as standard, thanks to a proprietary connection of very high precision with the base, which makes it possible to achieve stable and repeatable geometries.
Base Coaxial needle
Needle tips and dielectric supoprt are not included.

DISCOVER HOW TO ASSEMBLE MODULAR COAXIAL NEEDLE


LOOKING FOR AN ALL INCLUSIVE SOLUTION?

We offer you the base, dialectric support, tip, sealing kit for coaxial needle and the female lauer adapter. All included in a single kit.

NEEDLE SIZE

LENGTH 35.75 MM

  • COAX-N108: 21 (gauge) - 0.83 mm OD - 0.51 mm ID.
  • COAX-N118: 15 (gauge) - 1.83 mm OD - 1.37 mm ID.

LENGTH 25.25 MM

  • COAX-N208: 21 (gauge) - 0.83 mm OD - 0.51 mm ID.
  • COAX-N218: 15 (gauge) - 1.83 mm OD - 1.37 mm ID.
  • COAX-N230: 11 (gauge) - 3.05 mm OD - 2.39 mm ID.

LENGTH 15 MM

  • COAX-N308: 21 (gauge) - 0.83 mm OD - 0.51 mm ID.
  • COAX-N318: 15 (gauge) - 1.83 mm OD - 1.37 mm ID.
  • COAX-N330: 11 (gauge) - 3.05 mm OD - 2.39 mm ID.

NEEDLE SELECTION GUIDE

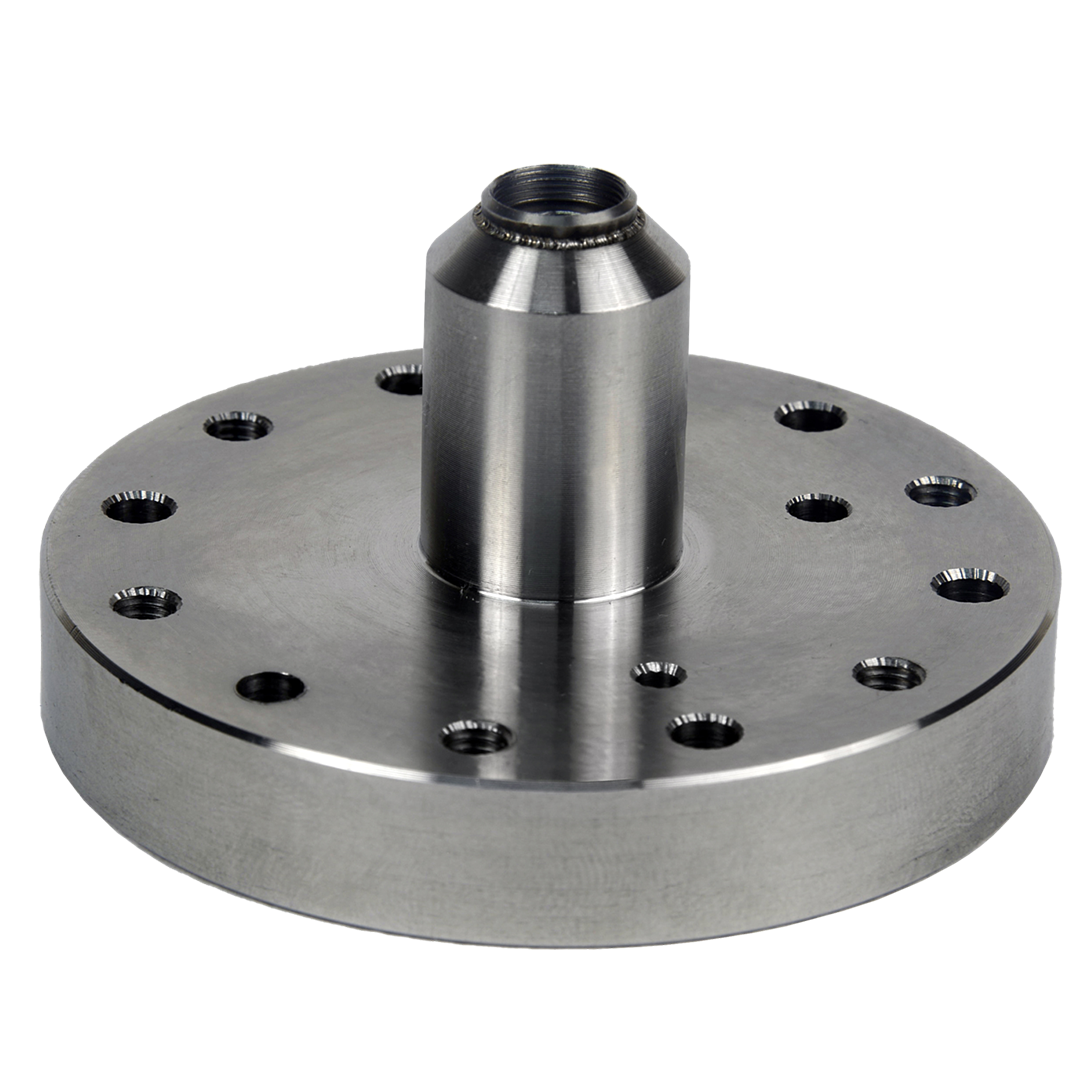

LAYER 1 BASE - INTERNAL

Suitabe with all COAX-N.
At least the second layer (COAX-L2M) is necessary to complete a coaxial system.

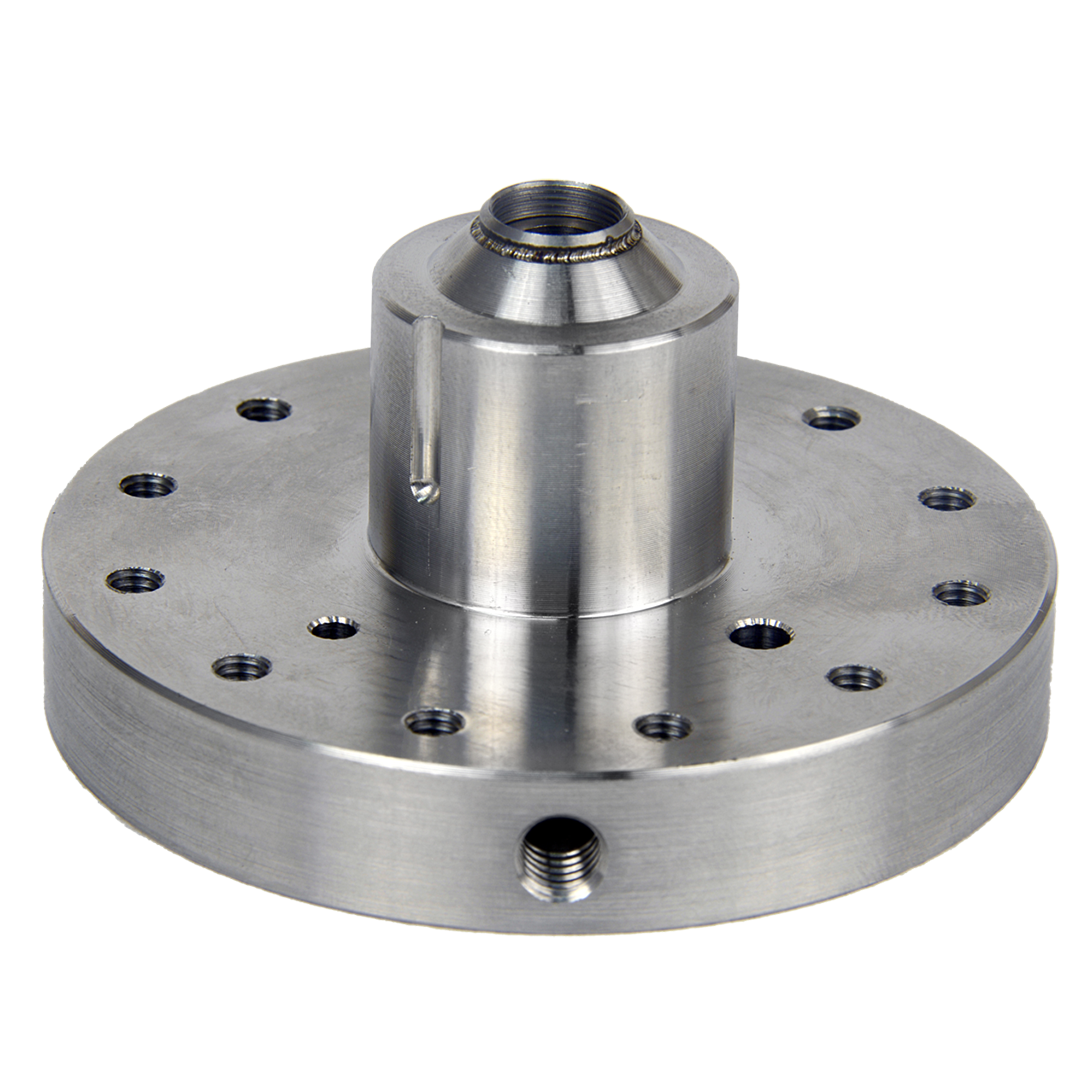

LAYER 2 BASE - INTERMEDIATE

  • Layer 1 Coax-N108 -> Layer 2 Coax-N218
  • Layer 1 Coax-N118 -> Layer 2 Coax-N230
At least the first layer (COAX-L1M) is necessary to complete a coaxial system.

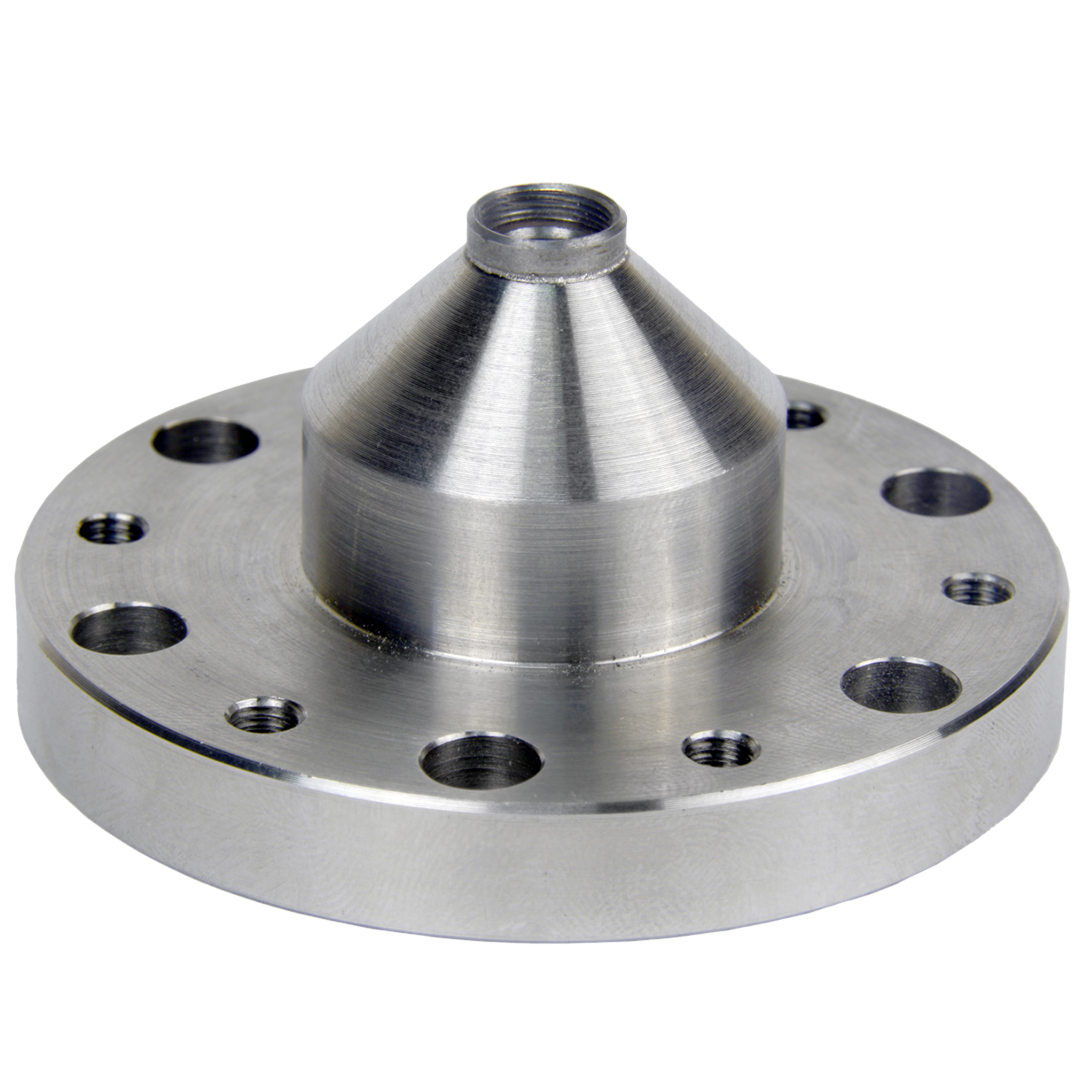

LAYER 3 BASE - EXTERNAL

Layer 1 Coax-N108 -> Layer 2 Coax-N218 -> Layer 3 COAX_N330


The first (COAX-L1M) and the second layer (COAX-L2M) are necessary to complete a coaxial system.

Layer base
