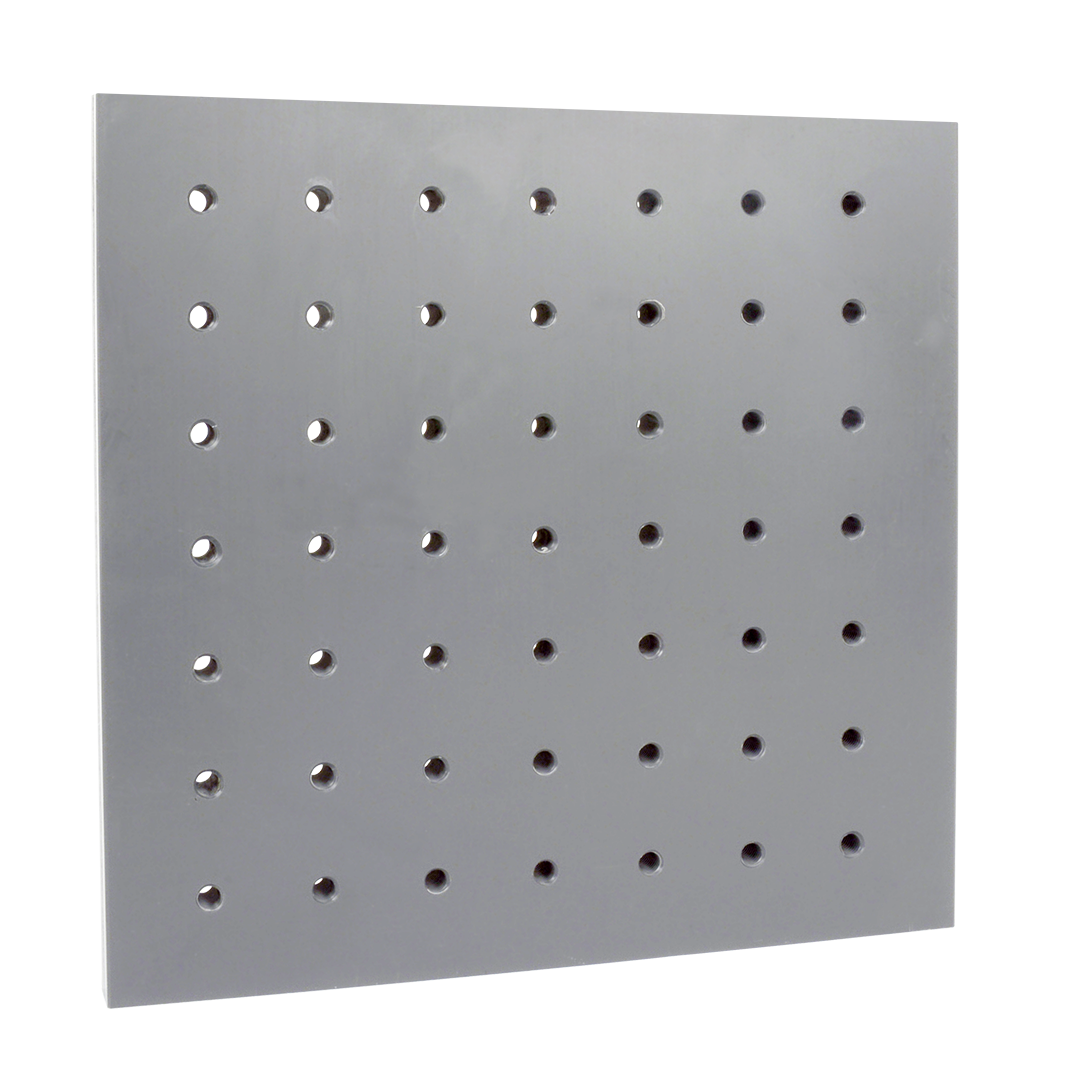

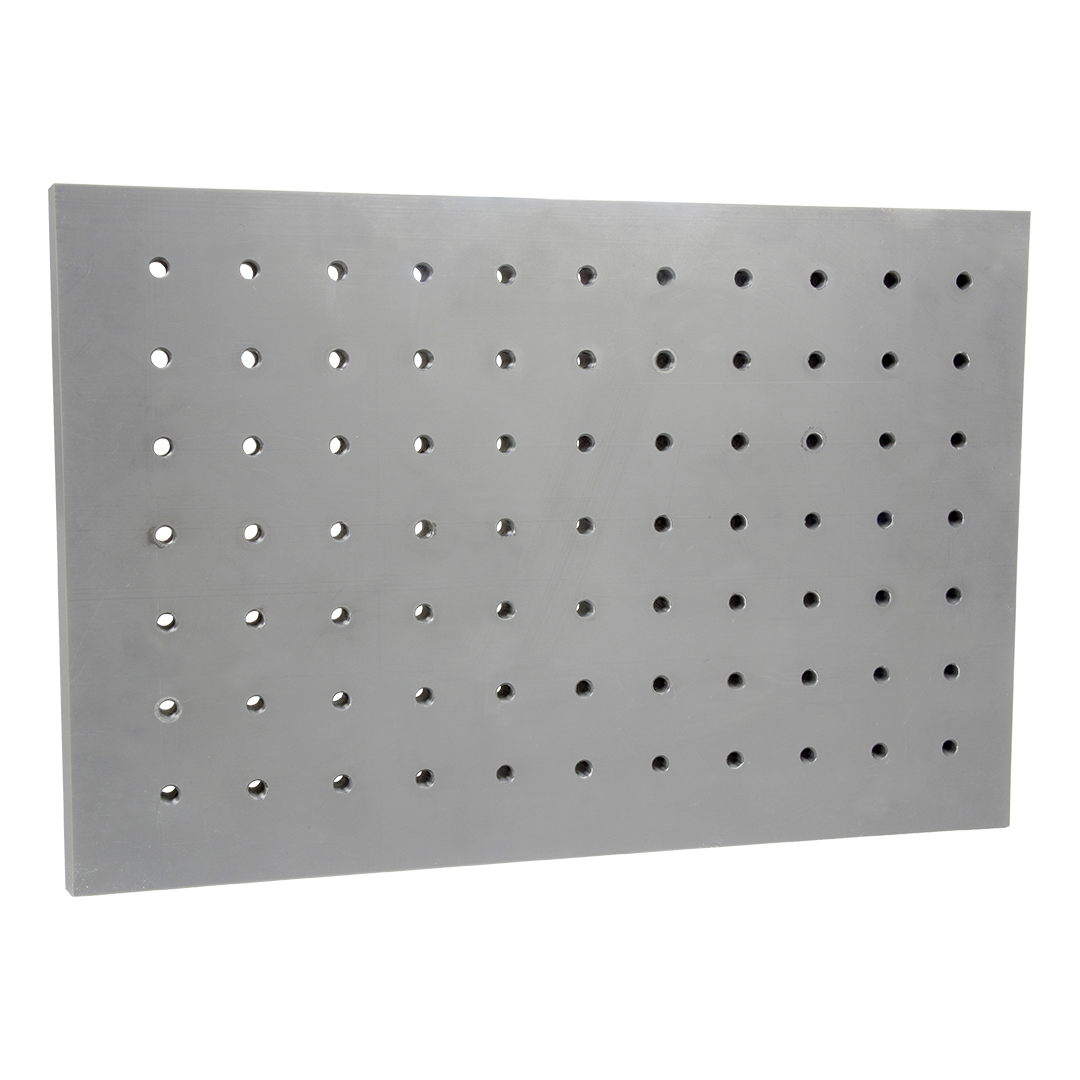

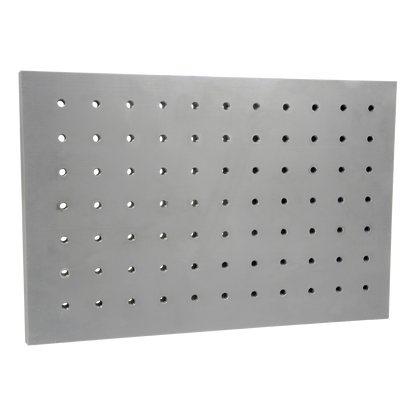

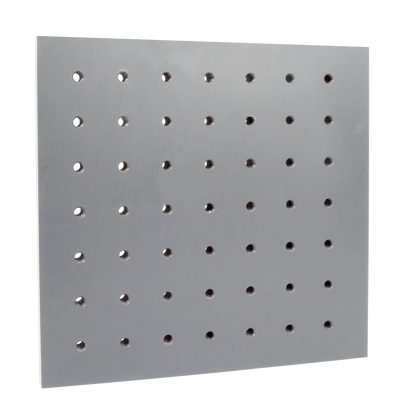

Modular Support Plate – Aluminum, M6 Grid

Aluminum plates with precision perforations to easily fasten needle supports and vertical supports for flat collectors — the foundation of a stable electrospinning workspace.

STABLE WORKSPACE WITH PRECISE, REPEATABLE GEOMETRIES

The precision hole grid permits simple fastening of both needle supports and vertical supports for flat collectors, so the needle–collector geometry stays identical between experiments — the prerequisite for reproducible fiber deposits.

WHAT ADVANTAGES DO YOU GET FROM THIS SUPPORT?

Thanks to the high electrical conductivity of aluminum, these plates can be used to create ground planes or high-voltage distribution systems — for example, for an array of coaxial needles in parallel.

All components are interchangeable and can be connected together to create support structures for cameras, pumps, lamps and customized collectors.

SPECIFICATIONS

• Material: aluminum
• Thickness: 15 mm
• Hole grid: 25 × 25 mm, M6 threaded
• Sizes: from 100×150 mm to 300×600 mm

FREQUENTLY ASKED QUESTIONS

Aluminum, PTFE or PVC: which modular support should I choose?

Aluminum when you need conductivity (ground planes, HV distribution) and maximum rigidity. PTFE for the most aggressive solvents and full dielectric behavior. PVC as the cost-effective dielectric option.

How do I fasten components to the plate?

With M6 hexagonal socket head screws — available as a 10-piece stainless steel pack.
