Syringe Pump- Remote Control – Linari Nanotech

DESCRIPTION
COMPATIBILITY/DETAILS
ASK MORE

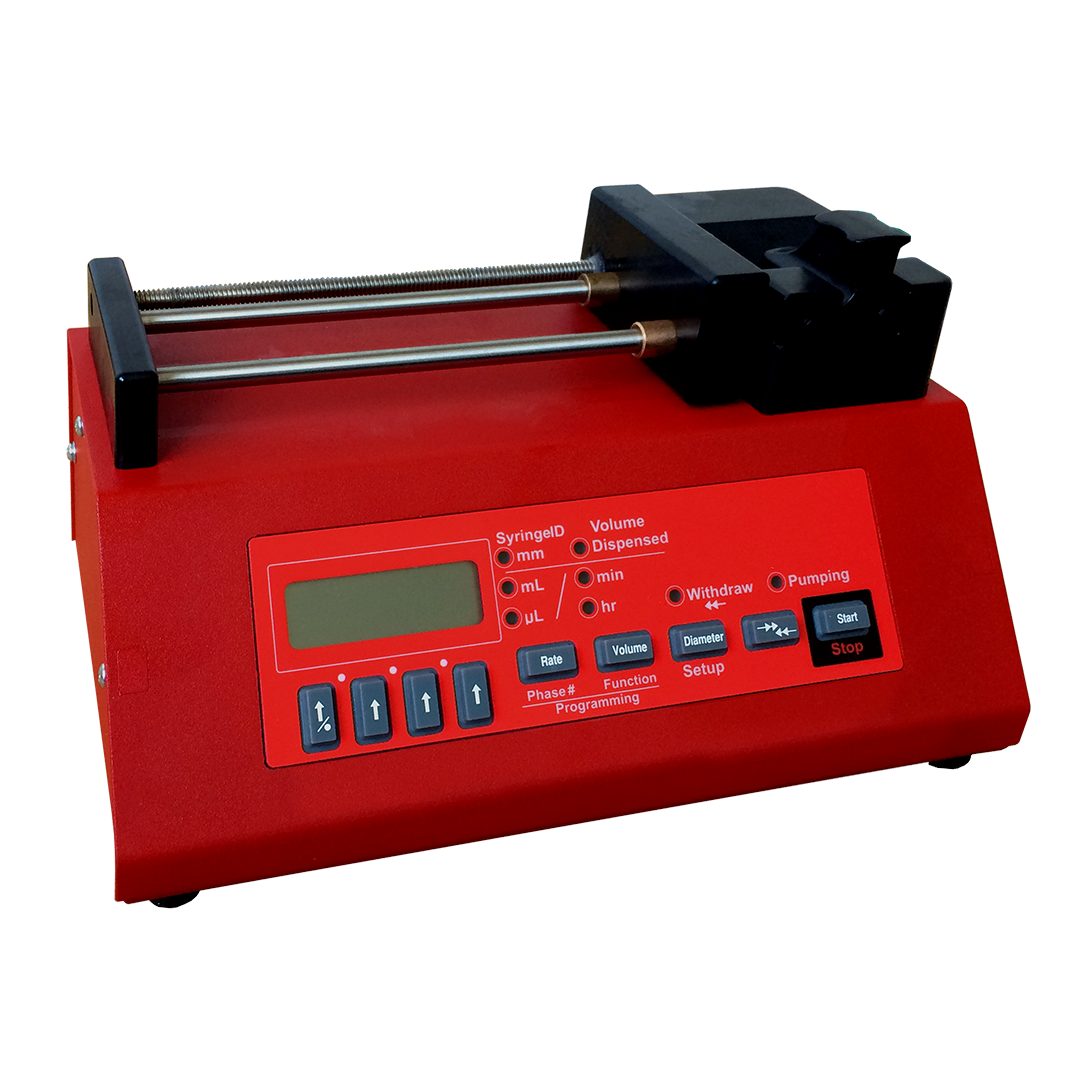

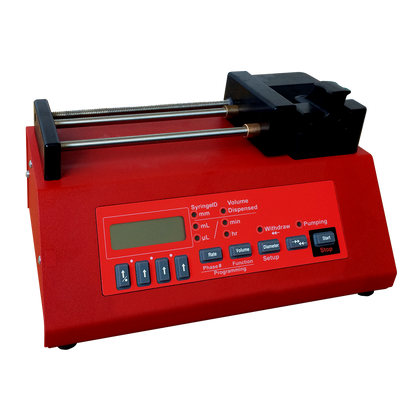

Single Channel:

Syringe Size	Maximum Rate	Minimum Rate
0.5 µL	25.49 µL/hr	0.001 µL/hr
1 mL	52.86 mL/hr	0.727 µL/hr
3 mL	223.8 mL/hr	3.076 µL/hr
5 mL	372.5 mL/hr	5.119 µL/hr
10 mL	607.6 mL/hr	8.349 µL/hr
20 mL	966.2 mL/hr	13.28 µL/hr
30 mL	1260 mL/hr	17.32 µL/hr
60 mL	2120 mL/hr	29.1 µL/hr
140 mL	3470 mL/hr	47.7 µL/hr

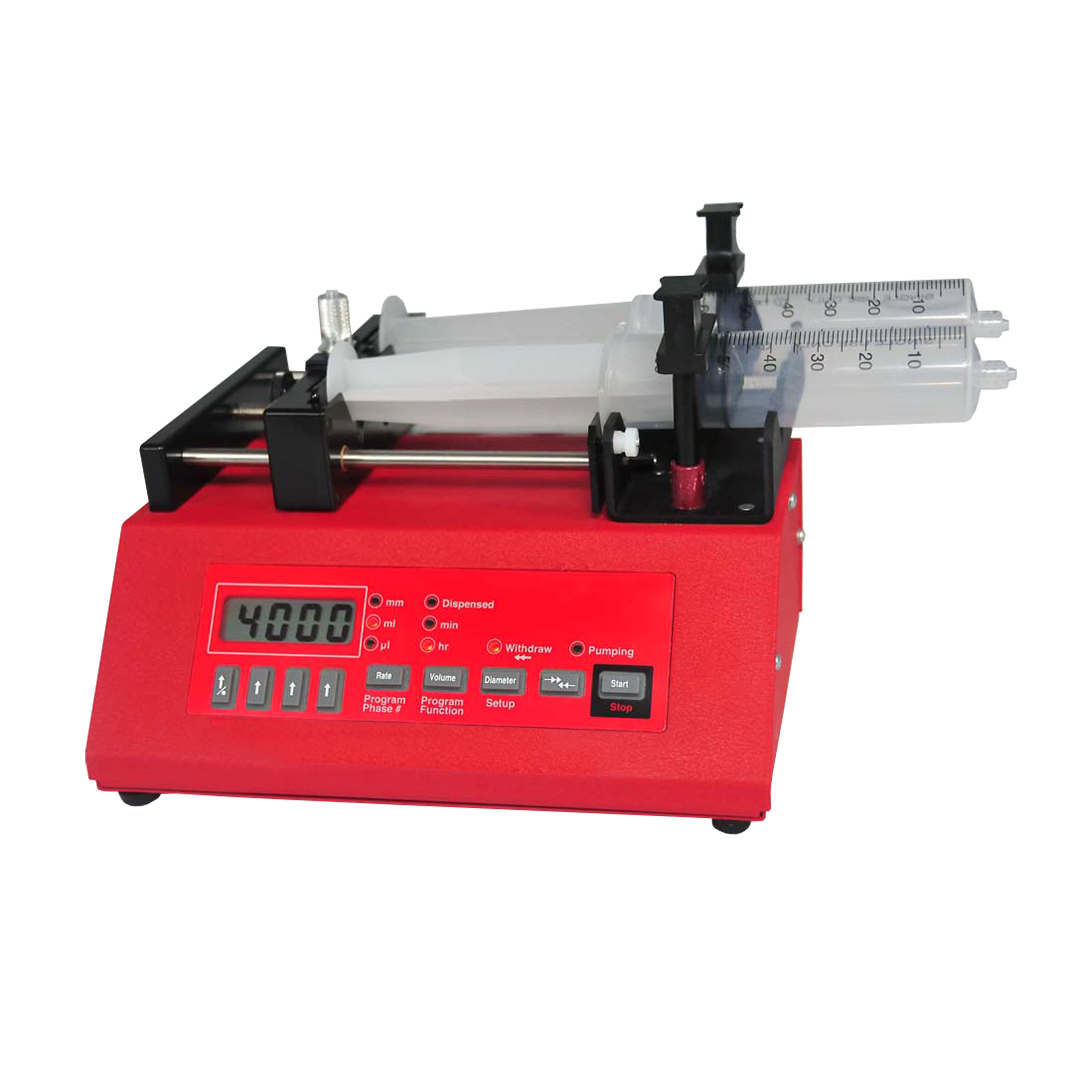

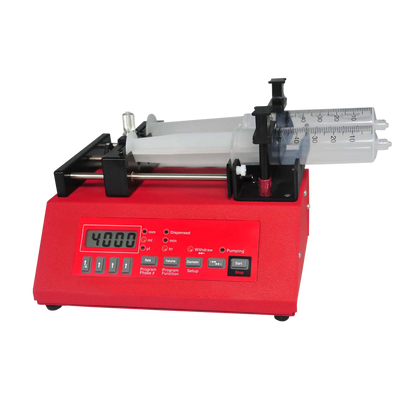

Double Channel:

Syringe Size	Maximum Rate	Minimum Rate
0.5 µL	90.39 µL/hr	0.001 µL/hr
1 mL	187.4 mL/hr	1.430 µL/hr
3 mL	793.4 mL/hr	6.054 µL/hr
5 mL	1320 mL/hr	10.08 µL/hr
10 mL	2153 mL/hr	16.44 µL/hr
20 mL	3425 mL/hr	26.14 µL/hr
30 mL	4468 mL/hr	34.09 µL/hr
60 mL	7515 mL/hr	57.34 µL/hr

Attention: do not apply tension over 25kV to the pump

For the application of higher voltages, it is strictly suggested to buy the syringe electrical insulation
